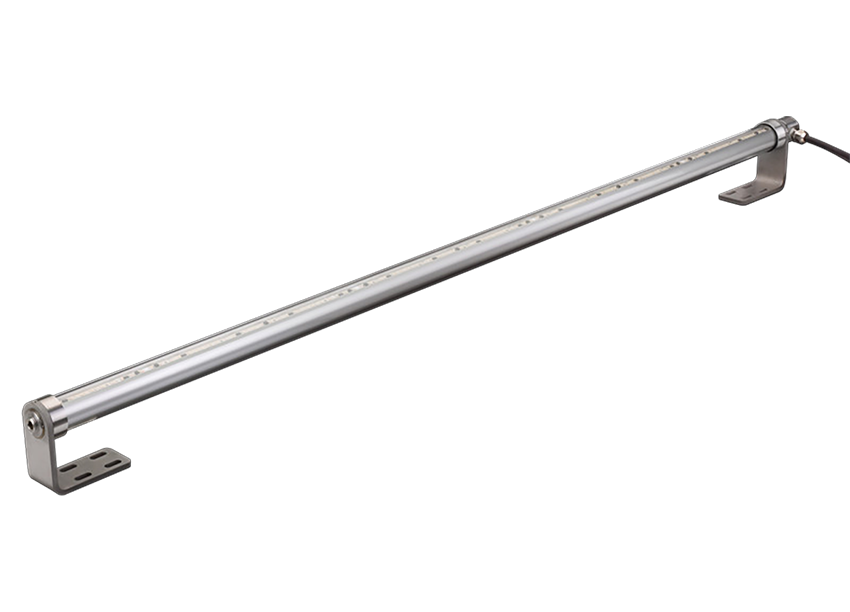

W6300

Linear LED Waterfall and Water Feature Fixture
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
The W6300 series is designed to be the most reliable and easiest to implement linear submersible solution available. It is a powerful IP68 rated linear submersible solution suitable for installation up to 9 feet (3m) deep in fountains and other water features.
It is not intended to accommodate the partial or complete immersion of people.
  • 2 distributions, narrow spot and very wide flood
  • W6300 is suitable for wet or dry application
  • Submersible, linear ranging from 12" to 48"
  • Dimmable using low voltage magnetic dimming switch
  • Color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
  • Up to 693 LMF
  • IP68 rated
Read More
Read Less
Light Source LED - Static
Lumens 190 LM, 290 LM, 380 LM, 490 LM, 600 LM, 700 LM, 750 LM, 800 LM, 950 LM, 1000 LM, 1100 LM, 1300 LM, 1400 LM, 1500 LM, 1700 LM, 2000 LM, 2400 LM, 2700 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 70
Product Type Underwater
Compliance Listing BAA and BABA
Environmental Listing IP68
Regulatory Listing ETL
Light Distribution Narrow Flood, Very Wide Flood
Fixture Wattage 10, 15, 19, 29, 3, 39, 5, 7, 9
Voltage Rating 024
Mounting Type Surface
Series W6312, W6318, W6324, W6330, W6336, W6342, W6348
