EMS LED Linear

LED enclosed-and-gasketed general purpose luminaire
    DLC PremiumCA Title 20Buy America(n) Option AvailableBuy America(n) Option Available
  • Aperçu
  • Caractéristiques

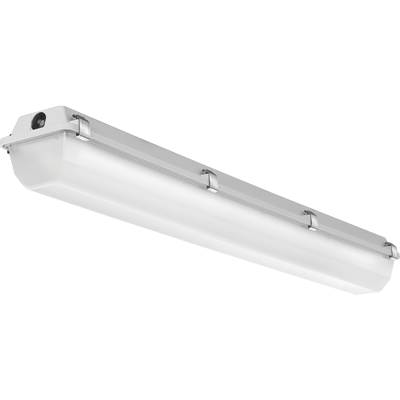

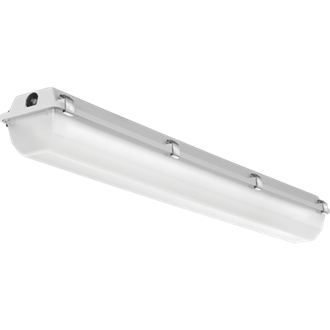

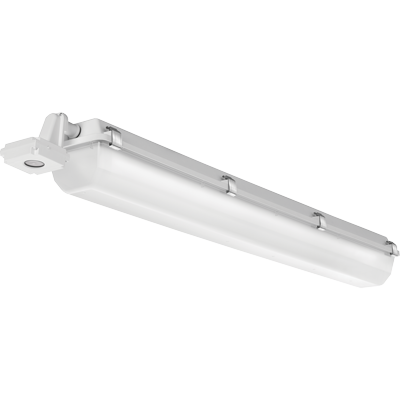

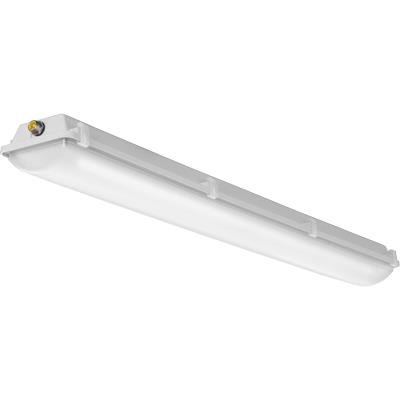

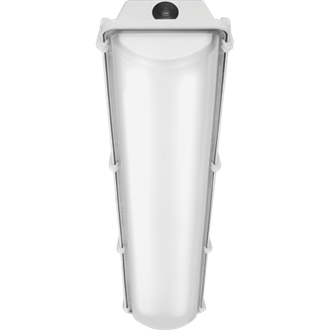

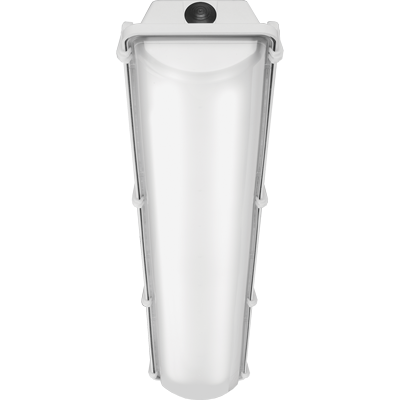

Specially designed for wet, damp and cold storage locations, the vapor-tight EMS LED luminaire from Holophane® withstands rugged environments and is available in 2-foot (L24), 4-foot (L48), and 8-foot (L96) lengths. Quality Construction -A one-piece, seamless fiberglass housing won’t corrode, rust, or crack, delivering years of reliable service and protection against the elements. A continuous, non-porous gasket keeps the fixture free from dust, dirt, and other unwanted contaminants. With its sleek appearance, low profile and numerous options, it is ideal for parking garages, industrial facilities, retail stores, garden centers, food service, and airports. The EMS LED is configurable to fit your budget and application with medium, wide, and parking garage distributions along with lumen packages ranging from 2,000 to 24,000 lumens and efficacy up to 170LPW. Additional options include nLight® wired and wireless controls, occupancy and daylight sensors, emergency battery backup, generator transfer and more. Listings include: IP65, IP66 & IP67 rated; NEMA 4X rated lens and housing; ambient temperatures rated for -31°F (-35°C) to 95°F (35°C) when the fixture is surface mounted or up to 122°F (50°C) when the fixture is suspended at least 6" from the ceiling.
En savoir plus
Lire moins
Light Source LED - Static
Lumens 2000 LM, 3000 LM, 4000 LM, 6000 LM, 8000 LM, 9000 LM, 10,000 LM, 12,000 LM, 15,000 LM, 18,000 LM, 20,000 LM, 24,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Liste de conformité BAA and BABA, CA Title 20, DLC Premium, DLC Standard
Certification environnementale IP65, IP66, IP67, IP69K, NEMA 4X, NSF, Wet Location
Inscription réglementaire cCSAus, UL924
Type de produit Linear
Protocole de gradation 0-10V
Tension 120, 120-277, 277, 347, 347-480, 480
Types de fixations Surface, Suspended
Emplacement de montage Ceiling, Wall
Primary Material Fiberglass
Architectural Style Traditional
Series EMS

En savoir plus Lire moins

  • Produits de remplacement suggérés

PRODUCT INFORMATION

  • Fiches techniques

    Type de document Titre du document Description Actualisé Voir
    Fiche technique EMS LED_.pdf EMS LED Enclosed and Gasketed 12/12/2024 Voir
  • Photométrie et BIM

    Utilisez % (pourcent) pour séparer les termes de recherche.

    1 - 1 de résultats

    Description rapport outils de conception
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Type de document Titre du document Description Actualisé Voir
    Spectral Data Sheet SpectralDataReport_Holophane_EMS_40K_80CRI.pdf EMS 40K 80CRI 12/14/2024 Voir
  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Documents techniques (ex. fiches d’instructions, FDS, CAO)

    Type de document Titre du document Description Actualisé Voir
    Instructions d'installation 912-00097-002 EMS LED Installation Instructions 2/4/2020 Voir
    Material Safety Data Sheet 11 - MSDS Data Sheet for E10WMCP.pdf MSDS Data Sheet for E10WMCP Battery 10/8/2024 Voir
    Material Safety Data Sheet SDS Data Sheet for E7WR2H, E10WRSTAR, E20WRSTAR SDS Data Sheet for E7WR2H, E10WRSTAR, E20WRSTAR 12/12/2024 Voir
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option


    Use the options below to ensure you get the results you're looking for

    Adjust your existing condition to make kWh calculations more accurate for custom rebates

    Filter the products shown so you only see the products that are relevant to you

    Wattage Range
    Lumen Range
    DLC/Energy Star
    Classification

    Choose which columns appear so you're comparing products using the right criteria

    LEGEND
    Product Page
    Spec Sheet Link
    Contractor Select
    DLC® Standard Screenshot
    DLC® Premium Screenshot
    DLC® Horticultural Screenshot
    ENERGY STAR® Screenshot
    PPEPhotosynthetic Photon Efficacy
    *Available through distributor only
    Utility
    undefined
    • Download current selection Download the products currently shown in the widget in the utility selected, with rebate estimates.
    • Download all products report Get emailed a report with all of this manufacturer's products with rebate estimates for a single utility.
  • Pièces de rechange

    Type de document Titre du document Description Actualisé Voir
    Pièces de rechange EMS Replacement Parts 12-14-24.pdf EMS LED Replacement LED Boards, Drivers, Lenses, SPDs, Latches 12/14/2024 Voir
  • Confidential Documents

  • Documents marketing (ex. brochures, fiches de vente, FAQ)

    Type de document Titre du document Description Actualisé Voir
    FAQ EMS LED FAQs.pdf EMS LED FAQs 12/11/2024 Voir
    Fiche de vente EMS LED Sell Sheet.pdf EMS LED Sell Sheet 12/11/2024 Voir
  • Documents archivés

  • Besoin d'une assistance produit? (ex. procédure d’achat, support technique, garantie)

    How to Buy

    Holophane products are primarily sold through our factory direct sales team, as well as, a network of agents and distributors for the utility market.

    •  Find a Representative or Agent


    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Contact Us (Lighting Fixtures)

    •  Contact Us (Controls Services & Support)


    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim
