Lithonia Lighting
Design Select (15 days or less)
Lithonia Lighting

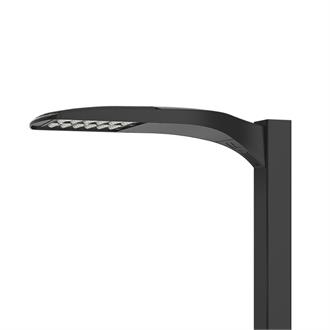

D-Series Area Size 2

DSX2 LED Area Luminaire
    DLC PremiumBuy America(n) Option AvailableBuy America(n) Option Available
  • Aperçu
  • Caractéristiques
En savoir plus
Lire moins
Forme Rectangular
Light Source LED - Static
Lumens 10,700 LM, 11,600 LM, 11,700 LM, 12,000 LM, 12,900 LM, 13,000 LM, 13,100 LM, 13,600 LM, 14,700 LM, 14,900 LM, 15,200 LM, 16,000 LM, 16,400 LM, 16,600 LM, 17,200 LM, 17,500 LM, 17,600 LM, 17,800 LM, 18,100 LM, 18,300 LM, 18,600 LM, 18,800 LM, 18,900 LM, 19,000 LM, 19,200 LM, 19,300 LM, 19,500 LM, 19,700 LM, 19,800 LM, 19,900 LM, 20,000 LM, 20,100 LM, 20,300 LM, 20,400 LM, 20,500 LM, 20,600 LM, 21,500 LM, 21,700 LM, 21,800 LM, 21,900 LM, 22,000 LM, 22,100 LM, 22,200 LM, 22,300 LM, 22,400 LM, 23,000 LM, 23,100 LM, 23,200 LM, 23,400 LM, 23,500 LM, 24,000 LM, 24,100 LM, 24,300 LM, 24,400 LM, 24,800 LM, 24,900 LM, 25,000 LM, 25,100 LM, 25,200 LM, 25,300 LM, 25,500 LM, 25,600 LM, 25,700 LM, 25,800 LM, 25,900 LM, 26,000 LM, 26,200 LM, 26,300 LM, 27,100 LM, 27,200 LM, 27,300 LM, 27,500 LM, 27,600 LM, 27,700 LM, 27,800 LM, 27,900 LM, 28,000 LM, 28,200 LM, 28,300 LM, 28,400 LM, 28,600 LM, 28,700 LM, 29,100 LM, 29,300 LM, 29,500 LM, 29,700 LM, 29,900 LM, 30,000 LM, 30,100 LM, 30,300 LM, 30,400 LM, 30,500 LM, 31,000 LM, 31,100 LM, 32,000 LM, 32,200 LM, 32,400 LM, 32,500 LM, 32,600 LM, 32,700 LM, 32,800 LM, 32,900 LM, 33,000 LM, 33,100 LM, 33,200 LM, 33,400 LM, 33,500 LM, 33,800 LM, 33,900 LM, 34,400 LM, 34,500 LM, 34,700 LM, 34,900 LM, 35,100 LM, 35,200 LM, 35,300 LM, 36,300 LM, 36,600 LM, 37,100 LM, 37,600 LM, 37,800 LM, 37,900 LM, 38,000 LM, 38,100 LM, 38,400 LM, 38,500 LM, 38,800 LM, 39,100 LM, 39,200 LM, 39,300 LM, 39,400 LM, 39,500 LM, 39,600 LM, 39,900 LM, 40,400 LM, 40,700 LM, 40,800 LM, 40,900 LM, 41,300 LM, 41,400 LM, 41,500 LM, 41,700 LM, 41,800 LM, 42,000 LM, 42,100 LM, 42,200 LM, 42,300 LM, 42,500 LM, 42,600 LM, 42,700 LM, 42,800 LM, 42,900 LM, 43,000 LM, 43,100 LM, 43,200 LM, 43,400 LM, 43,600 LM, 44,000 LM, 44,300 LM, 44,700 LM, 45,000 LM, 45,500 LM, 45,600 LM, 45,700 LM, 45,800 LM, 45,900 LM, 46,000 LM, 46,100 LM, 46,200 LM, 46,400 LM, 46,500 LM, 46,700 LM, 46,800 LM, 46,900 LM, 47,000 LM, 47,100 LM, 47,300 LM, 47,400 LM, 47,500 LM, 47,600 LM, 47,700 LM, 48,000 LM, 48,100 LM, 48,300 LM, 48,800 LM, 49,100 LM, 49,200 LM, 49,300 LM, 49,800 LM, 50,000 LM
CCT / LED Color 2700 K, 3000 K, 4000 K, 5000 K
CRI 70, 80
Type de produit Area Light
Liste de conformité BAA and BABA, DLC Premium, DLC Standard, Nighttime Friendly
Certification environnementale IP66
Inscription réglementaire C-UL-US
Protocole de gradation 0-10V
Fixture Wattage 136, 139, 140, 156, 158, 167, 180, 185, 198, 205, 206, 207, 217, 218, 220, 224, 247, 249, 254, 270, 272, 276, 277, 321, 322, 329, 341, 343, 344, 346, 349, 350, 396, 398, 401, 405, 406, 407, 410, 411, 414, 431, 438, 455, 472
Tension 120-277, 277-480, 347-480
Color Beige, Black, Bronze, Gray, Green, Silver, White
Types de fixations Pole Mount
Series DSX2

En savoir plus Lire moins

  • Produits de remplacement suggérés

PRODUCT INFORMATION

  • Fiches techniques

    Type de document Titre du document Description Actualisé Voir
    Fiche technique 1 - DSX2-LED.pdf DSX2 LED Spec Sheet 10/16/2024 Voir
    Fiche technique Lithonia-Amber Series LED Area Luminaire-DSX2-AREA-Rectangular.pdf DSX2 LED AMBER Area Luminaire 6/29/2023 Voir
