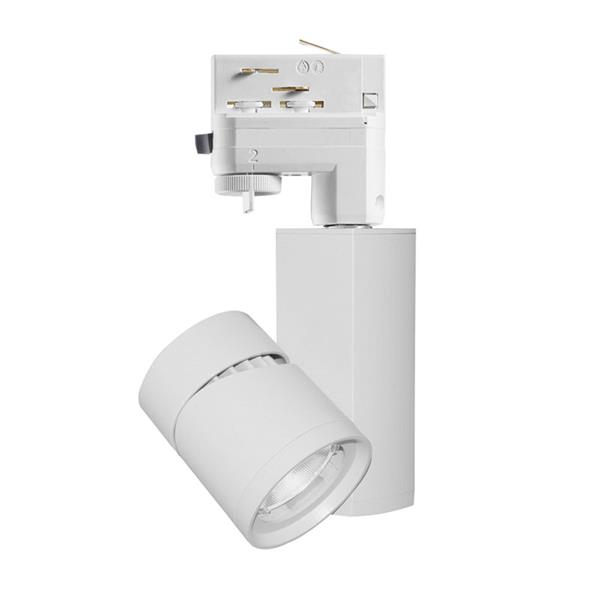

T383L TEK Trac Head

Trac-Master® Vertical Cylinder LED Trac Head with TEK Adapter
    DLC StandardCA Title 24/JA8Buy America(n) Option AvailableBuy America(n) Option Available
  • Aperçu
  • Caractéristiques
The classic appearance of the T383L TEK LED Vertical Cylinder fixture offers a fresh take on the traditional aesthetic. This 24W state-of-the-art trac light delivers up to 2446 lumens, is up to 80% more efficient than equivalent halogen and has a rated life of 50,000-hours. It is available in 2700K, 3000K, 3500K and 4000K color temperatures and 80 or 90 CRI versions. Optional SpectralWhite color/white enhancing versions offer 90+ CRI, rendering colors richly and making whites appear naturally brilliant.
High performance LED array provides outstanding reliability, performance and color quality/consistency, chromaticity range within a 3-step MacAdam Ellipse 2700K, 3000K, 3500K and 4000K CCT's offer 80 CRI and 90 CRI versions. SpectralWhite version available in 3000K and 3500K, offers 90+ CRI All metal housing and custom designed heat sink provide outstanding thermal management, yielding 70 percent minimum lumen maintenance at 50,000-hours of operation Driver assembled in a side-mount vertical housing to minimize overall fixture footprint. Insulating air gap between driver and LED light engine optimizes thermal operation Precision designed custom TIR optical system available in either spot, narrow flood, flood or wide flood beam distributions An integral, bayonet-mount accessory holder enables quick conversion between beam spreads. Accommodates up to two accessories if desired 360-degree horizontal coverage, greater than 90-degree vertical aiming capability Dimmable using high quality, factory-approved reverse phase ELV dimmers - see spec sheet Available in white, black or silver finishes UL/cUL Listed. ENERGY STAR® Certified, DesignLights Consortium® Qualified.
En savoir plus
Lire moins
Forme Cylinder
Light Source LED - Static
Lumens 2400 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 90 SpectralWhite
Type de produit Track Head
Liste de conformité BAA and BABA, CA Title 24, DLC Standard, JA8
Inscription réglementaire C-UL-US, cUL, UL
Protocole de gradation Electronic Low Voltage, Reverse Phase
Color Black, Silver, White
Types de fixations Track/Monopoint
Tension 120
Fixture Wattage 24
Track Mounting Adapter TEK
Series T383L

En savoir plus Lire moins

  • Produits de remplacement suggérés

PRODUCT INFORMATION

  • Fiches techniques

    Type de document Titre du document Description Actualisé Voir
    Fiche technique T383L G2.pdf T383L G2 Spec Sheet 10/14/2024 Voir
    Fiche technique T383L-G2-DIM.pdf T383L G2 Dimming Compatibility 3/26/2021 Voir
    Fiche technique T383L_D1_3_50.pdf (Discontinued) T383L Gen 1 Spec Sheet (Discontinued) 7/24/2017 Voir

  • Photométrie et BIM

    Utilisez % (pourcent) pour séparer les termes de recherche.

    1 - 1 de résultats

    Description rapport outils de conception
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Documents techniques (ex. fiches d’instructions, FDS, CAO)

    Type de document Titre du document Description Actualisé Voir
    Instructions d'installation P3218 TEK Trac Adaptor.pdf TEK 120V Lighting Trac System Fixture Adaptor Installation Instructions 2/1/2019 Voir
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Pièces de rechange

  • Confidential Documents

  • Documents marketing (ex. brochures, fiches de vente, FAQ)

    Type de document Titre du document Description Actualisé Voir
    Brochures Juno LED Vertical Cylinders Brochure.pdf Trac-Master Vertical LED Cylinders 12/20/2024 Voir
