IOTA
Contractor Select (1-2 Days)
IOTA

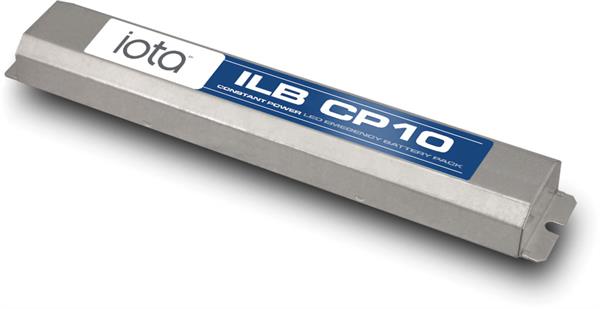

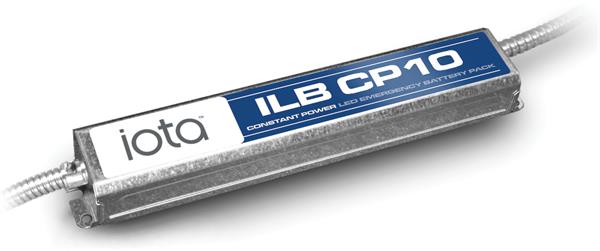

ILB CP10 Emergency Driver

10 Watt Constant Power LED Emergency Driver
  • Overview
  • Specifications
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 10-60 VDC
Output Power 10 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing cUL, NFPA 101
Compliance Listing ROHS
Environmental Listing Damp Location
Series ILBLP, ILB
Days To Ship 2 or Less

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Contractor Select ILB CP10 A Contractor Select ILB CP10 A Emergency LED Driver 5/26/2021 View
    Spec Sheet Copy & Paste Specification Sample Specification for ILB CP10 models 7/16/2020
    Spec Sheet ILB CP10 Specifications Specification Sheet for ILB CP10 Models 6/16/2023 View
    View Product

    Need a Stocked Product?

    View Now

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View

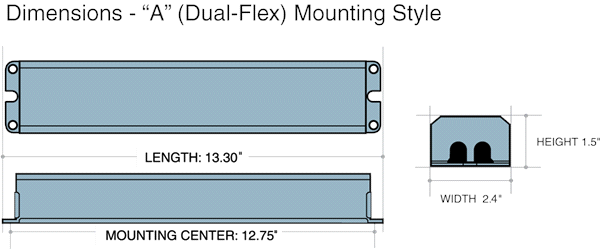

    3D Model ILB CP10 A STEP File - ILB CP10 A (Dual Flex) Mounting Style 7/15/2020

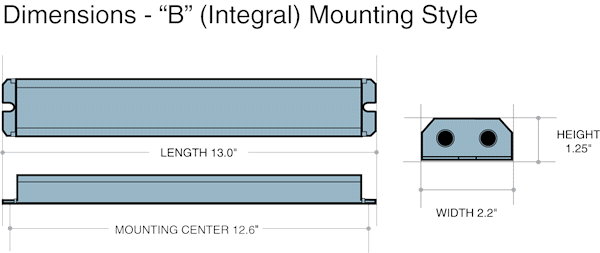

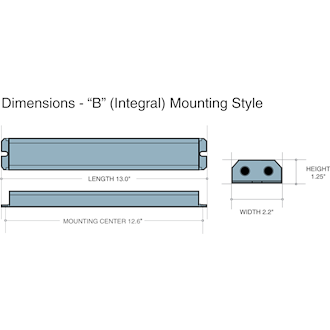

    3D Model ILB CP10 B STEP File - ILB CP10 B (Integral, No Flex) Mounting Style 7/15/2020
    3D Model ILB CP10 J STEP File - ILB CP10 J (Junction Box) Mounting Style 7/15/2020
    3D Model ILB CP10 TM STEP File - ILB CP10 TM (Top Mount) Mounting Style 7/15/2020
    Accessories IP67 Test Switch Accessory for Select IOTA Drivers The IPS is an IP67-rated component purchased separately for select IOTA emergency drivers 10/27/2022 View
    Installation Instructions A (Dual Flex) Mounting Style Installation Manual for "A" (Dual Flex) Mounting Style 9/19/2024 View
    Installation Instructions B (Integral) Mounting Style Installation Manual for the "B" (Integral) Mounting Style 9/19/2024 View
    Installation Instructions J (Junction Box) Mounting Style Installation Manual for the "J" (Junction Box) Mounting Style 9/19/2024 View
    Installation Instructions R (Reflector) Mounting Style Installation Manual for the "R" (Reflector) Mounting Style 9/24/2019 View
    Installation Instructions RJ (Reflector/Junction Box) Mounting Style Installation Manual for the "RJ" (Reflector/Junction Box) Mounting Style 9/19/2024 View
    Installation Instructions TM (Top Mount) Mounting Style Installation Manual for the "TM" (Top Mount) Mounting Style 9/19/2024 View
    Installation Instructions XB (Push-in-Terminals) Mounting Style Installation Manual for XB (Push-in-Terminals) Mounting Style 9/19/2024 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
    Wiring Diagram Dual Negative AC Driver DWG File - ILB CP with Dual Negative AC Driver 6/26/2020
    Wiring Diagram Dual Negative AC Driver PDF File - ILB CP with Dual Negative AC Driver 6/26/2020 View
    Wiring Diagram Step Down Transformer PDF File - ILB CP with Step Down Transformer 6/26/2020 View
    Wiring Diagram Step Down Transformer DWG File - ILB CP with Step Down Transformer 6/26/2020
    Wiring Diagram Typical Installation PDF File - Typical Installation with TBTS Test Accessory 6/26/2020 View
    Wiring Diagram Typical Installation DWG File - Typical Installation with TBTS Test Accessory 6/26/2020

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Application Guide Cableado del IOTA ILB CP Pasos rápidos para conectar correctamente un driver de emergencia LED IOTA a su luminaria 4/12/2021 View
    Application Guide Contractor Insider - Auto-Sense Learn how IOTA Auto-Sense simplifies selecting the proper emergency driver for LED luminaires. 2/8/2021 View
    Application Guide Contractor Insider - Emergency Lumen Output A quick guide on understanding how wattage correlates with emergency lumen output 9/15/2021 View
    Application Guide Contractor Insider - Remote Mounting Guidelines A Quick Reference for knowing remote mounting capabilities of emergency lighting solutions. 10/21/2021 View
    Application Guide ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 8/11/2023 View
    Application Guide ILB CP Wiring Reference Guide Quick steps for properly adding an IOTA ILB CP LED Emergency Driver to your luminaire 7/8/2022 View
    Application Guide Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 View

  • Archived Documents

  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    The IOTA products are primarily sold through a network of agents and distributors across North America.

    •  Find an Agent or Distributor

    •  Request a Call

    Technical Support

    The IOTA technical team is dedicated to providing outstanding product support. Please click on the appropriate link below,
    or feel free to call us at 855.363.9527.

    •  FAQs

    •  Technical Library

    •  Email Us

    Warranty

    Please click on the link below to learn more about terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties
