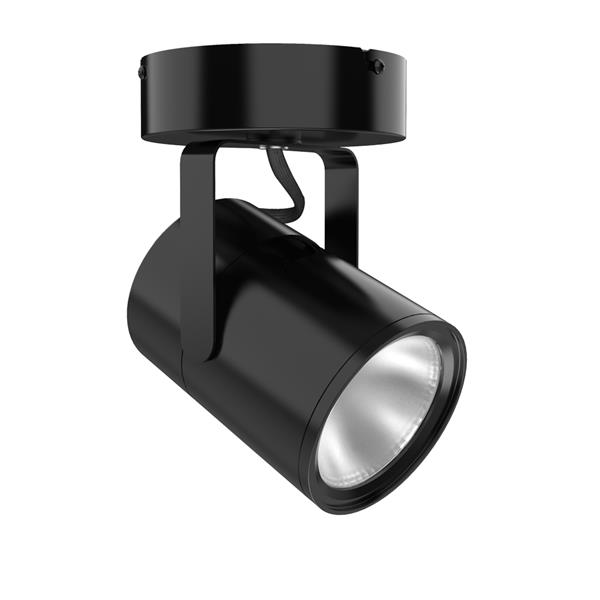

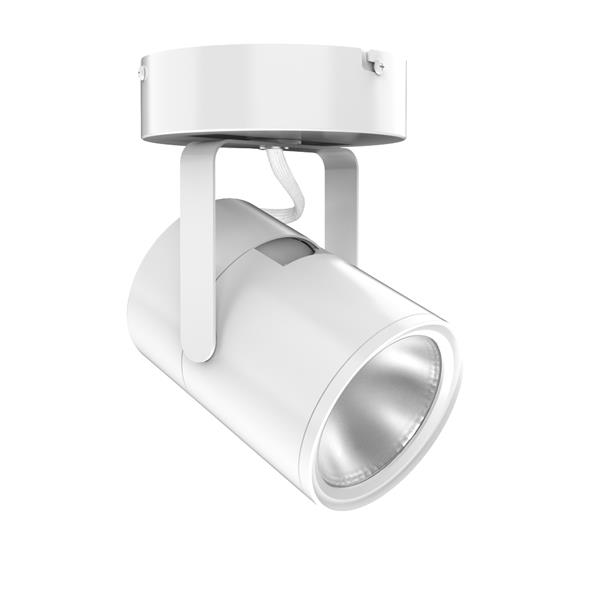

T286L CPY Canopy Mount Fixture

Trac-Master® Flat Back Cylinder LED Trac Head with Direct Canopy Mount Option
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
The T286L Series LED Flat Back Cylinder fixture with Canopy Mount option is designed with a unique, patented, precision optical system which produces uniform spot, narrow flood or flood distributions. The 43W T286L Series can deliver up to 3900 lumens, utilizing less than 1/3 of the energy of halogen equivalents, and has a rated life of 50,000 hours. It is available in 2700K, 3000K, 3500K and 4000K color temperatures and 80 or 90 CRI versions. Optional SpectralWhite color/white enhancing versions offer 90 CRI, rendering colors richly and making whites appear naturally brilliant. These fixtures can be mounted on horizontal surfaces (ceilings) or vertical surfaces (walls) or any orientation in between. Ideally suited to help with energy code compliance, the CPY option also enables 120V or 277V operation and enables phase or 0-10V dimming.
Read More
Read Less
Shape Cylinder
Light Source LED - Static
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Track Head
Compliance Listing BAA and BABA
Environmental Listing Damp Location
Regulatory Listing C-UL-US, cUL, UL
Dimming Protocol 0-10V, Electronic Low Voltage, Forward Phase, Incandescent, Magnetic Low Voltage, Reverse Phase
Color Black, White
Mounting Type Surface, Track/Monopoint
Voltage Rating 120-277
Fixture Wattage 42
Track Mounting Adapter CANOPY
Series T286L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet JUNO-Juno Trac-T286L-Flat Back Cylinder.pdf Dimming Compatibility Sheet 12/15/2022 View
    Spec Sheet Juno-Trac Master-T286L.pdf T286L Trac-Master® 43W Flat Back Cylinder LED 10/14/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions deep canopy install instructions_rev 3.1 - French.pdf Installation Instructions for Deep Canopy Mounting Option - French 5/29/2024 View
    Installation Instructions deep canopy install instructions_rev 3.1 - Spanish.pdf Installation Instructions for Deep Canopy Mounting Option - Spanish 5/29/2024 View
    Installation Instructions deep canopy install instructions_rev 3.1.pdf Installation Instructions for Deep Canopy Mounting Option 5/8/2024 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Sell Sheet JUN_Direct Canopy Mount Option Sell Sheet.pdf Juno Trac Direct Canopy Mount Option Sell Sheet 9/25/2024 View
