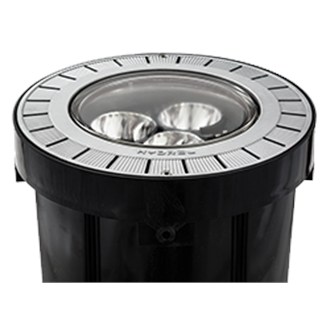

M9700C LED

Static White Modular Ingrade Fixture, Outdoor In-ground Luminaire, Multi-Purpose
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Size 12 IN
Light Source LED - Static
Lumens 2200 LM, 2500 LM, 2700 LM, 2800 LM, 2900 LM, 3000 LM, 3100 LM, 3200 LM, 3300 LM, 3500 LM, 3600 LM, 3700 LM, 3800 LM, 3900 LM, 4100 LM, 4200 LM, 4300 LM, 4500 LM, 4600 LM, 4700 LM, 4800 LM, 4900 LM, 5100 LM, 5200 LM, 5400 LM, 5500 LM, 5600 LM, 6000 LM
CCT / LED Color 2000 K, 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 70
Product Type In-Grade
Compliance Listing BAA and BABA
Environmental Listing IP68, Wet Location
Regulatory Listing CSAus, NOM
Dimming Protocol 0-10V, Forward Phase
Light Distribution Flood, Medium Flood, Narrow Flood, Narrow Spot, Wall Wash, Wide Flood
Fixture Wattage 29, 35, 46, 53, 57
Voltage Rating 120-277
Mounting Type In-grade
Color Black, Bronze, Gray, Green, Silver, White
Series M9710C, M9720C, M9730C, M9740C

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet M9700C LED.pdf In-Grade Luminaire 3/14/2024 View
    Spec Sheet M9700C_LED_RETROFIT.PDF M9700C LED RETROFIT 4/17/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Report_Hydrel_M9700C_30K_80CRI.pdf Spectral Data Report M9700C 80CRI 30K 11/9/2022 View
    Spectral Data Sheet Spectral Data Report_Hydrel_M9700C_40K_80CRI.pdf Spectral Data Report M9700C 80CRI 40K 11/9/2022 View
    Spectral Data Sheet Spectral Data Report_Hydrel_M9700C_80CRI_27K.pdf Spectral Data Report M9700C 80CRI 27K 11/9/2022 View
    Spectral Data Sheet Spectral Data Report_Hydrel_M9700C_80CRI_35K.pdf Spectral Data Report M9700C 80CRI 35K 11/9/2022 View
    Spectral Data Sheet Spectral Data Report_Hydrel_M9700C_80CRI_50K.pdf Spectral Data Report M9700C 80CRI 50K 11/9/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ABL General Warnings, Form No. 503.204 ABL General Warnings, Form No. 503.204 11/8/2012 View
    Installation Instructions ABL LED General Warnings, Form No. 503.203 ABL LED General Warnings, Form No. 503.203 11/8/2012 View
    Installation Instructions M9000 ingrade LED retrofit installation.pdf M9000 Ingrade LED retro fit 3/23/2022 View
    Installation Instructions M9700C Housing Installation.pdf M9700C In-Grade Rough-In Housing Only 11/18/2015 View
    Installation Instructions M9700C Installation.pdf M9700C In-Grade 4/8/2021 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions INS_M9000_Switch between double and single.pdf How to switch between double and single lensed finishing sections for M9000 In-grades 3/23/2017 View
    Replacement Part Spec Sheet PARTS_MFSC97_SINGLE_LENS.pdf Replacement Parts for M9700C single lens finishing sections 11/20/2023 View
    Replacement Part Spec Sheet PARTS-MACLC.pdf Replacement parts for MACLC LED module 10/4/2022 View
    Replacement Part Spec Sheet PARTS-MFSC97 DOUBLE LENS.pdf Replacement parts for M9700C double lens finishing section 7/14/2022 View
    Replacement Part Spec Sheet PARTS-MHSLC97.pdf M9700C Driver Module Replacement Part 1/12/2016 View
    Replacement Part Spec Sheet PARTS-MRISC97.pdf Replacement parts for M9700C series housing 10/6/2020 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Application Guide Flagpole Lighting Guide Hydrel Flagpole Lighting Guide by Hydrel. For the love of flags and their stories! Get the updated guide. 11/18/2024 View
    Application Guide Hydrel Wall Wash App Guide - M9700C LED.pdf Hydrel Wall Wash Application Guide - M9700C LED 5/4/2016 View
    Brochures M9000 Architectural Ingrade Series Brochure M9000 Architectural Ingrade Series, inground lighting 9/5/2023 View
