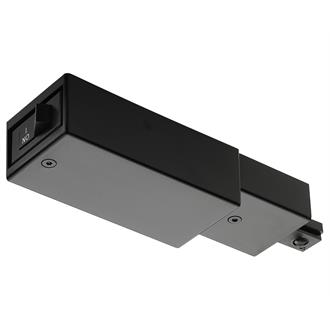

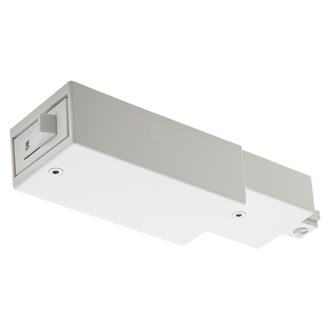

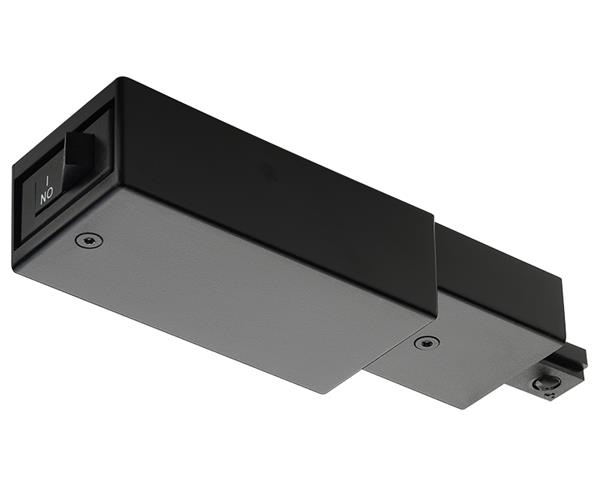

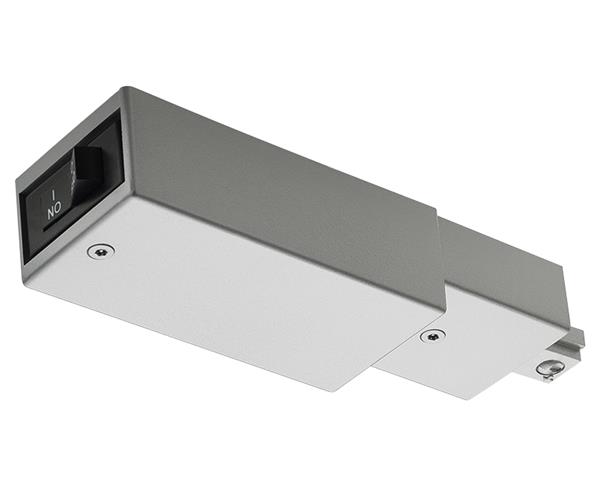

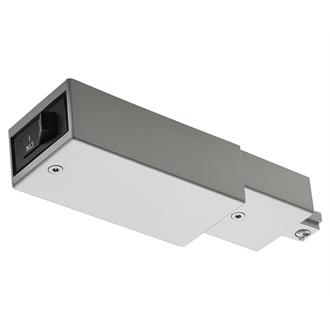

TCLFM11 End Feed

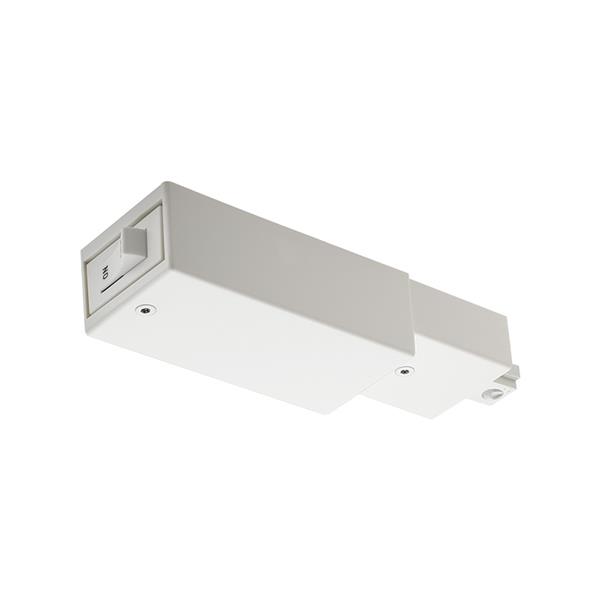

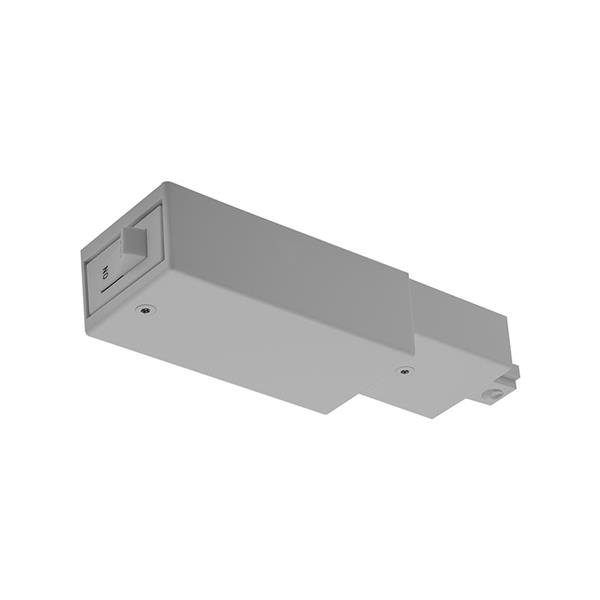

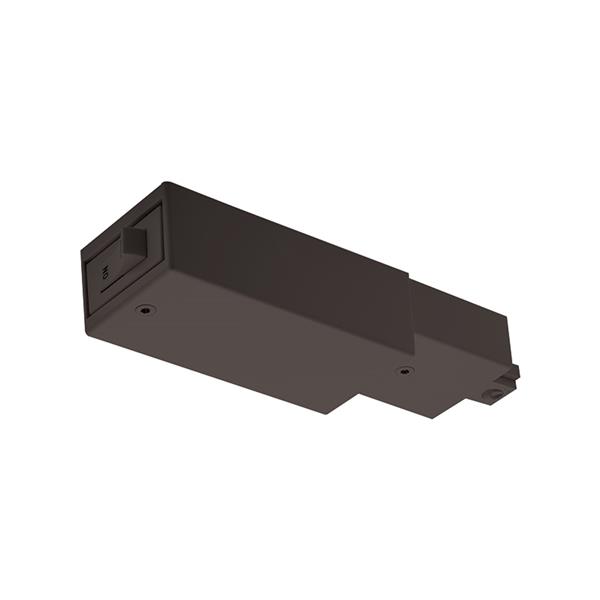

Juno® Trac-Master® TCLFM11 current limiting mini end feeds provide a simple solution for complying with today’s stringent energy codes. Installed at every trac feed location, they utilize supplementary current limiting circuit breakers (ordered separately) that limit the available wattage to only that required by the actual lighting design criteria. Trac lighting density and performance can be optimized with energy-efficient fixtures, and configuration flexibility can be retained, without exceeding code-mandated power utilization limits and incurring watts-per-linear-foot penalties.  Reverse polarity TCLFMR11 current limiting end feed is designed for use in opposite orientation compared to standard feed connectors.
Current limiting mini end feeds are used in conjunction with supplementary current limiting circuit breakers, which are specified and ordered separately Not intended to be used as a primary circuit protector; single-circuit trac compatibility only Heavy-duty, 16 gauge, die-formed galvanized steel mounting plate; slides into trac channel to prevent sagging in suspended applications Surface mounting only – not intended to be installed over a j-box; T-bar compatible only when installed off-grid and fed directly One 7/8-inch knockout for direct electrical feed connections; includes ground terminal attachment screw Injection-molded polycarbonate cover attaches to mounting plate using tamper-resistant screws; mini end feed connector attached to trac with one-way screw Available in white, black, or silver finishes UL/cUL Listed
